Wireless M-Bus Sensor

2x Temperature (BTS-100/T)
2x Analog In (BTS-100/AN)
2x S0 Input (BTS-100/S0)
Battery operation for many years (10+ years), battery replaceable
Intelligent power-saving mechanisms (automatic extension of transmission interval for irrelevant measurement changes)
Battery monitoring

BTS-100/T is an Ultra-Low-Power sensor, i.e. our development engineers have optimized it for minimal power consumption.

Communication / Radio Protocols

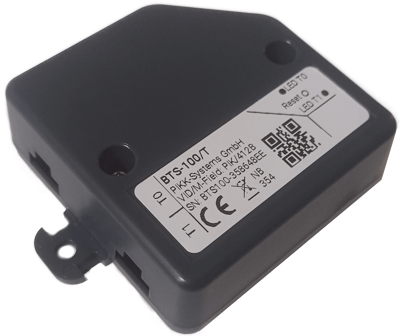

BTS-100/T

Digital Temperature Sensors

Dimensions
Standards	./.
L x W x H [mm]	62 [84 with flanges] x 62 x 24
Material	PC, anthracite, acc. to RAL 7016
IP Rating	IP20
Power Supply
External Connector	BTS-100/AN & BTS-100/S0: 2 wires for power supply
Internal	1x 2/3 AA 3.6V Li (replacable)
Typ. Power Consumption	depending on configuration
Interfaces / Sensors
Temperature [BTS-100/T]	Range -55..+125° Absolute Accuracy: <=0.4°C [10..70°C] Resolution: 0.088°C
Analog-Input [BTS-100/AN]	0-20V
S0 [BTS-100/S0]	2x Input
Ambient
Operating Temperature	0-50° C
Operating Rel. Humidity	0-85% rH, non condensing
Storage	-30..+60 °C
Standards
Safety / EMC / RF	CE
Export
Tariff Information	9031 8038

Communication	Wireless M-Bus (MBS-)
Protocol / Frequency	OMS / Wireless M-Bus 868 MHz
Role / Mode	T1/S1 configurable TX cycles / intervals configurable Intelligent measurement cycles, saves battery lifetime if measurement values do not change
Transmit Power	max. +14dBm
Receive Sensitivity	./.
Antenna	Internal, PCB
Encryption	contact manufacturer
